TECHNICAL SPECIFICATIONS:

Product Overview

The F6 Pro Stainless Steel Digital Lock designed for residential and commercial use, offering multiple unlocking methods and advanced security features.

Key Technical Details

Physical Specifications

• Material: 304# stainless steel, ABS, acrylic
• Available Colors: Satin Nickle and Black Nickle
• Door Thickness Compatibility: 38-55 mm
• IP Rating: IP62 (Not standard)

Connectivity

• Communication Protocol: BLE 5.0
• Supported Operating Systems:
  • iOS 7.0 or above
  • Android 4.4 or above
• WiFi Gateway: Available (G2 version)

Power and Performance

• Power Supply: DC6V (4 pcs AAA alkaline batteries)
• Battery Life: 10,000 normal open operations (12 months)
• Static Current: <50 µA
• Dynamic Current: <200 mA

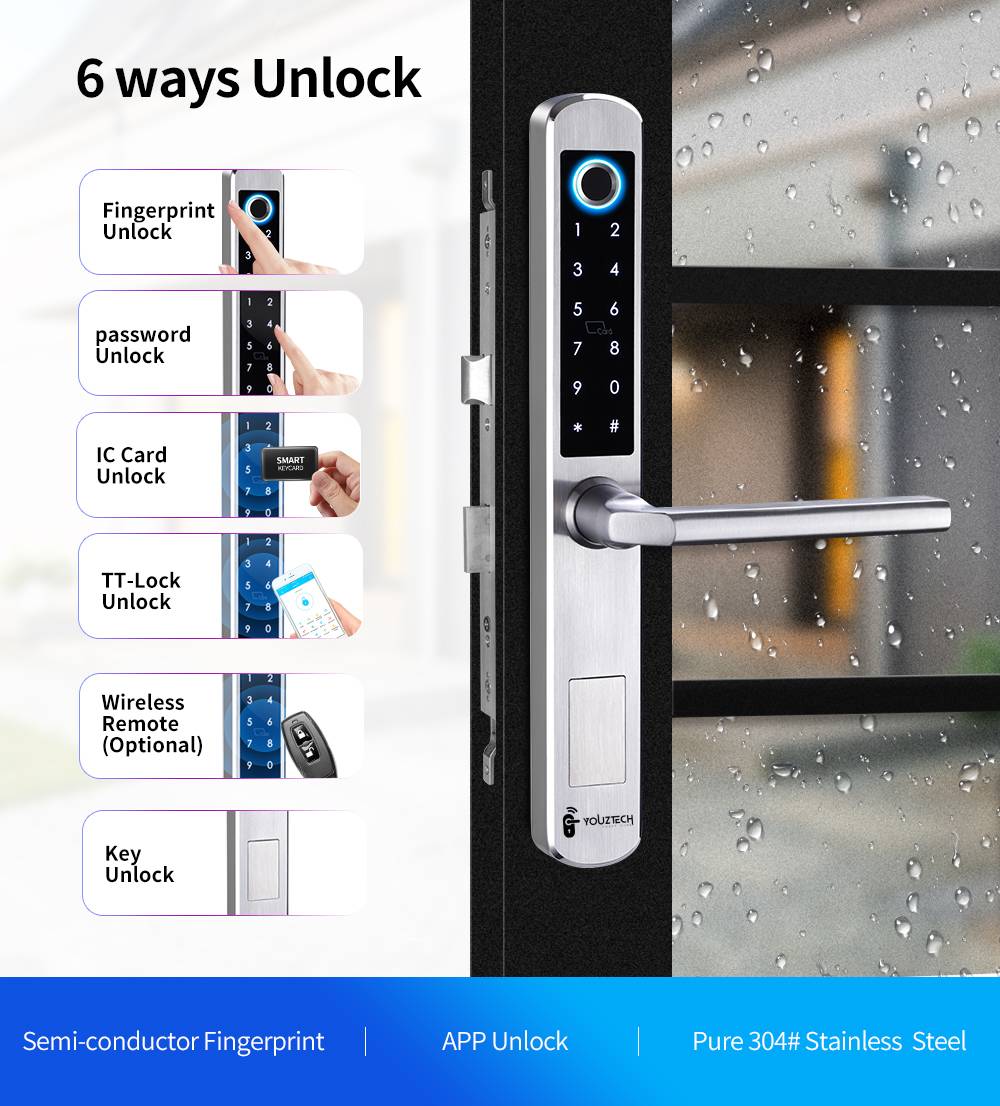

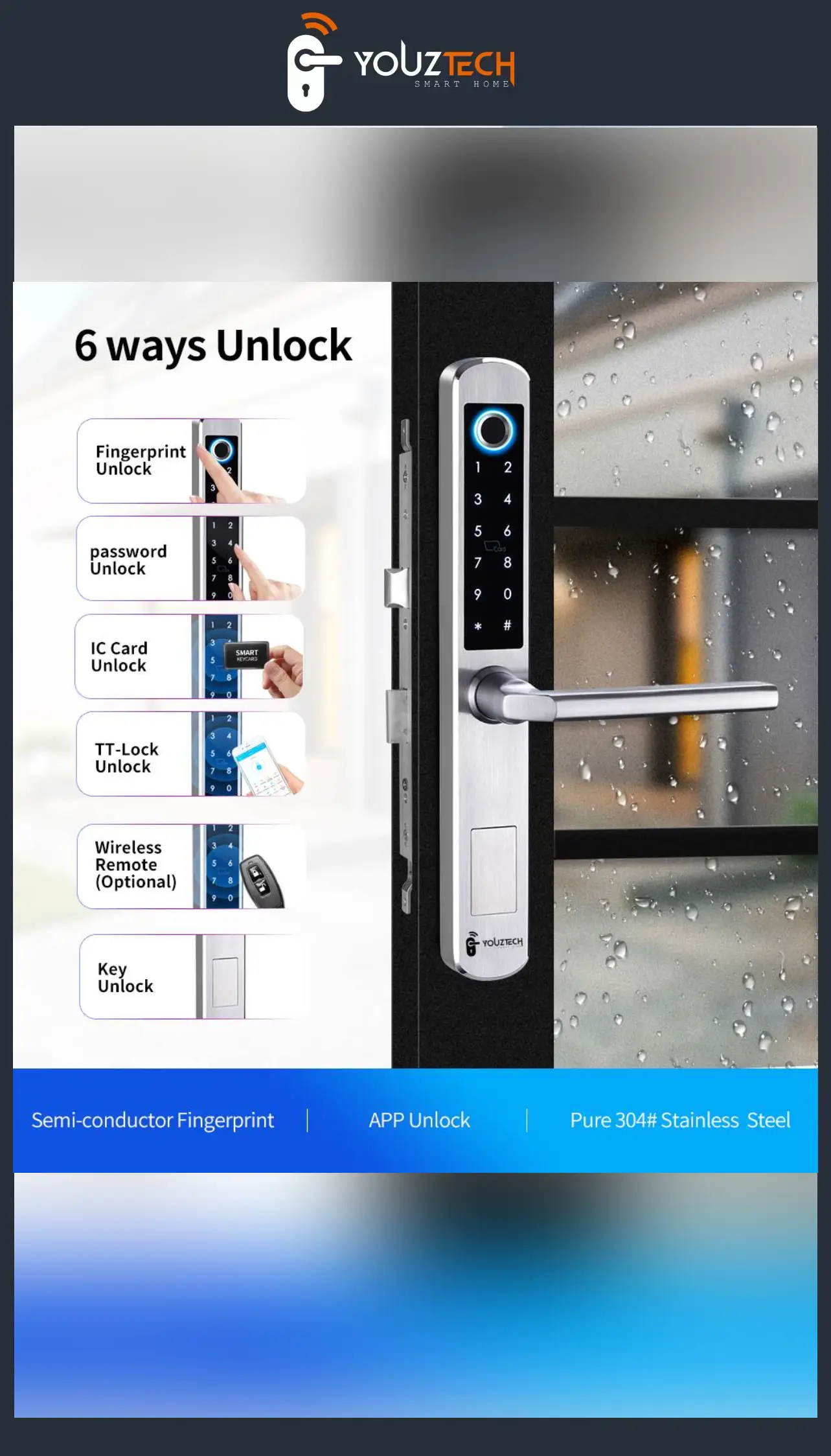

Unlocking Methods

• IC Card
• Passcode
• Fingerprint
• Mobile APP
• Manual Key

Operational Characteristics

• Unlock Time: 1-1.5 seconds
• Working Temperature: -20°C to 45°C
• Working Humidity: 10% – 95%
• Available Mortise Sizes: 28/35/45/50/60/70 mm

Warranty

• Electronic Parts: 1-year limited warranty
• Mechanical and Finish: Limited lifetime warranty
